The combination of Edale’s FL5 press with its in-line flatbed die-cutter (FDC) enables the on-line production of carton packaging up to 0.7 mm thick. This setup allows printing, finishing treatments, and die-cutting to be completed in a single pass, resulting in significant cost savings and increased productivity and profitability in the production process.

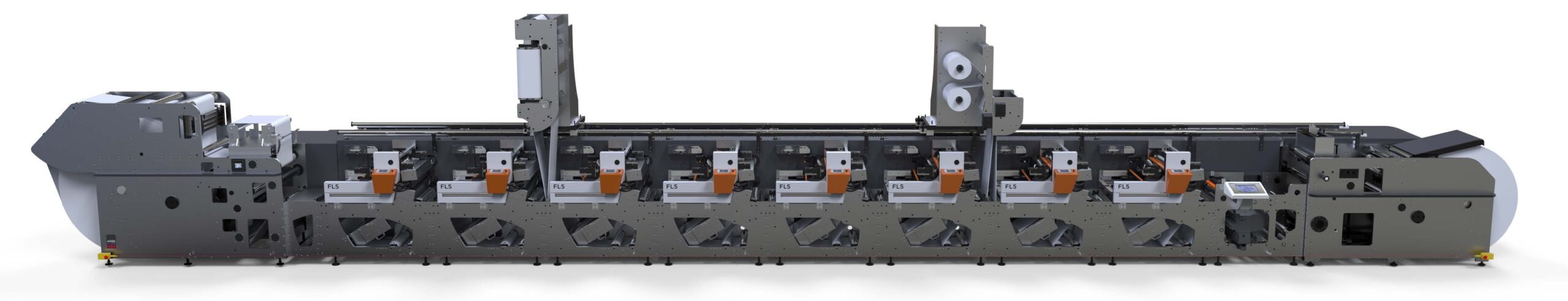

Specifications | FL5 |
---|---|
Web Widths (mm / inch) * 600 es el ancho estándar |
540 mm | 21.2″ 600 mm | 23.6″ 650 mm | 25.5″ |
Print Repeat (mm / inch) |
254 – 711.2 mm | 10 – 28″ |
Material Thickness (micron / pt) |
12 – 700 microns 0.5 – 28 pt |
Mechanical Speed (m/min | ft/min) |
200 m/min | 660 ft/min |

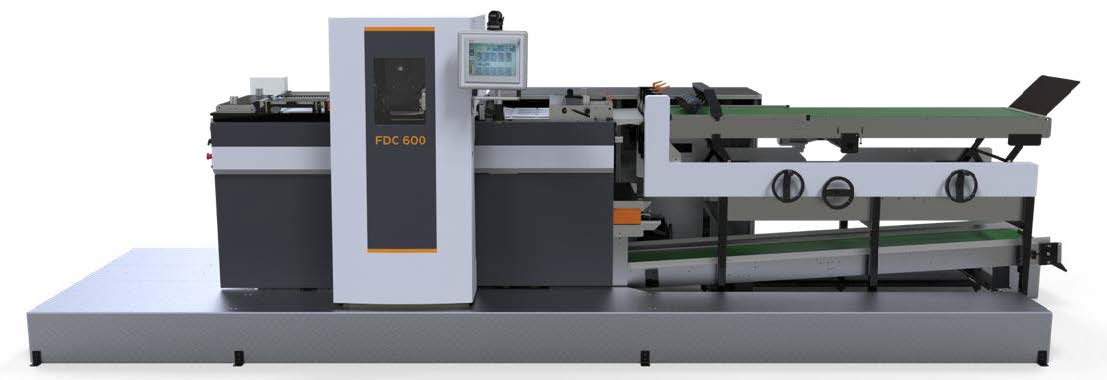

Specifications | FDC |
---|---|
Maximum Web Width (mm / pulg) |
600 mm | 24″ |
Maximum Cutting Width (mm / pulg) |
580 mm | 22.83″ |
Maximum Print Repeat (mm / pulg) |
711.2 mm | 28″ |
Maximum Die-Cutting Pressure | 165 tons |
Maximum Mechanical Speed | Up to 13,000 impressions per hour |

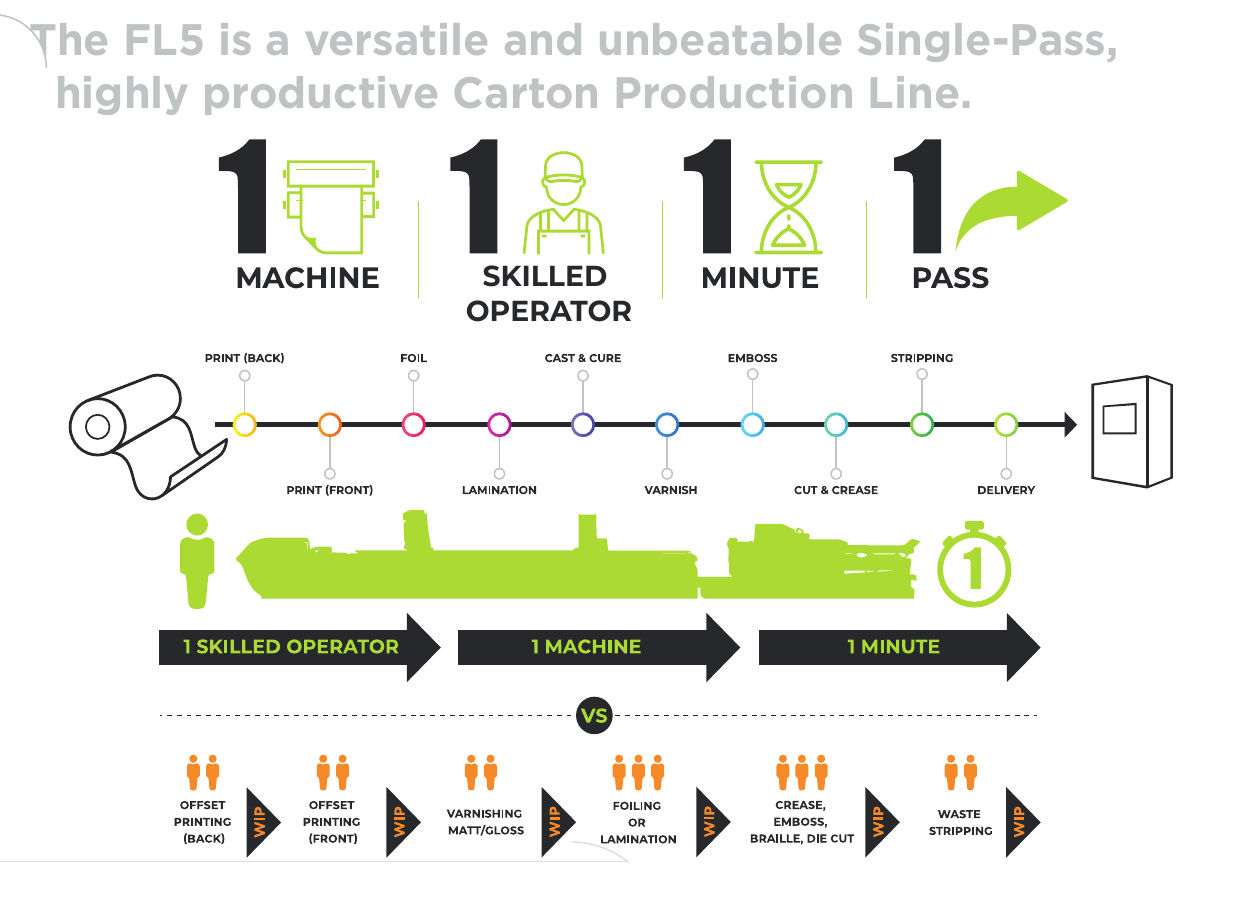

The FL5+FDC is a production system operated by a single operator that enables, in just one pass and depending on the chosen options:
All of this is done in a single pass, with only seconds between feeding plain carton and obtaining a product ready for folding and gluing.

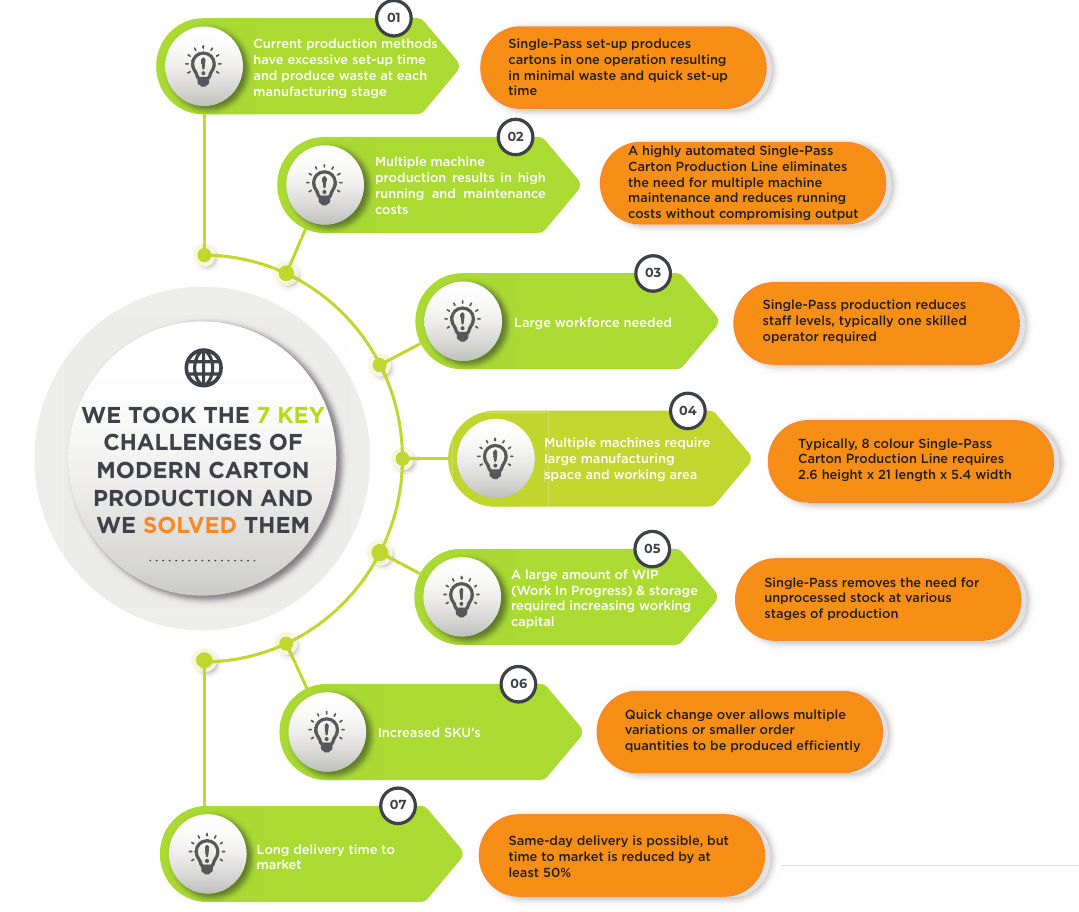

The profitability of the FL5+FDC is clearly demonstrable, offering significantly shorter payback periods compared to conventional carton packaging production systems.
